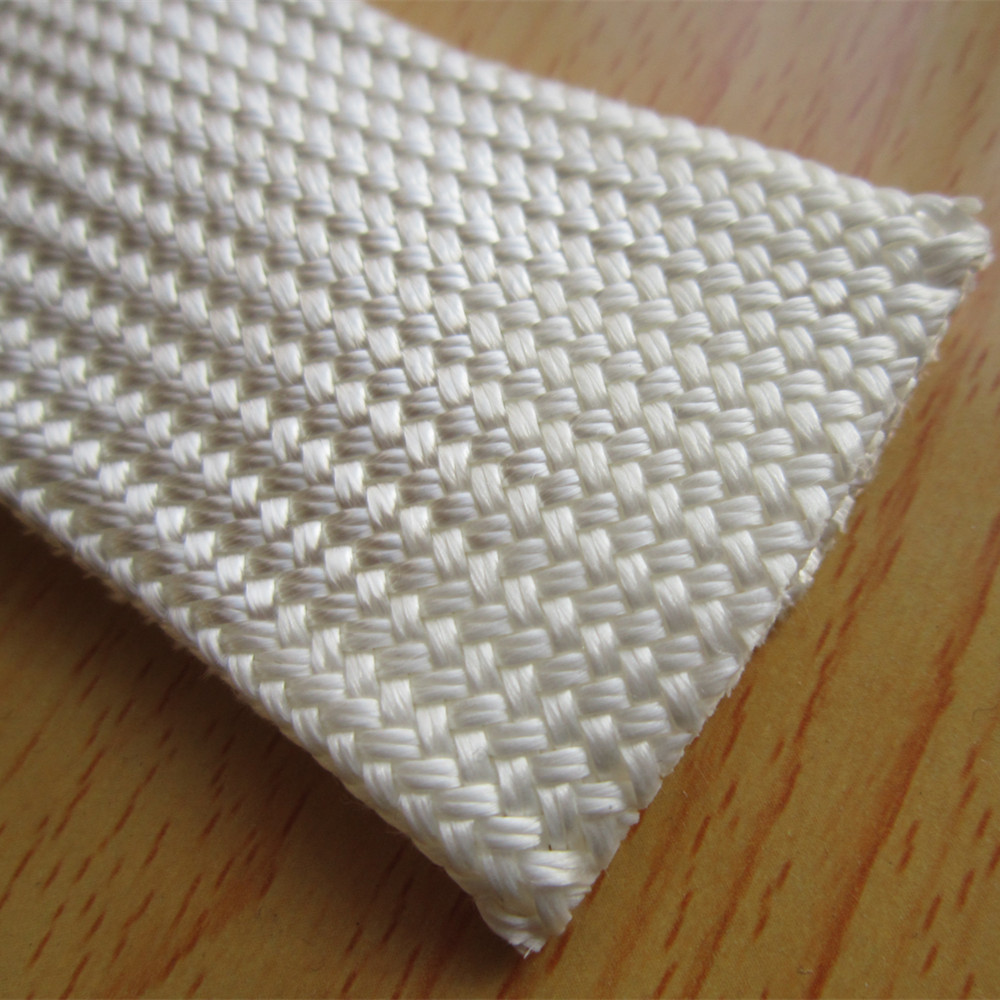

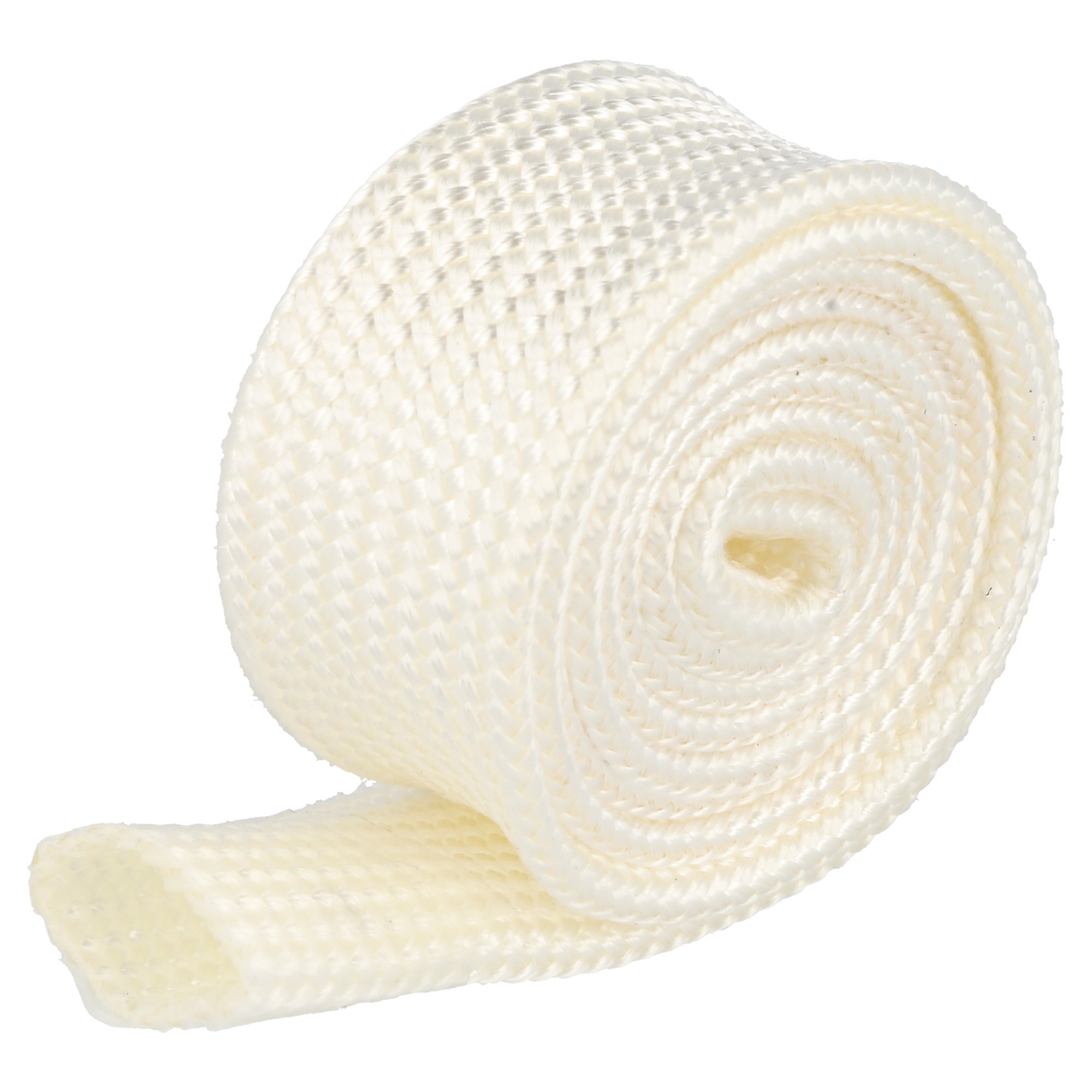

Manga de Alta Sílica para Proteção contra Temperaturas Extremas

Manga de sílica de alta qualidade para proteção contra temperaturas extremas.

Em termos de proteção térmica, chega-se a um ponto em que simplesmente adicionar mais uma camada de fibra de vidro comum deixa de ser a melhor solução.

Uma mangueira hidráulica que passa ao lado da carcaça de um forno, um cabo que passa por um coletor de escape ou uma linha de instrumentos que atravessa uma área de produção de alta temperatura podem permanecer mecanicamente íntegros enquanto a temperatura ao seu redor se desloca constantemente para além da faixa de conforto dos materiais de proteção convencionais.

É aqui que ummanga de alta sílicatorna-se relevante.

O revestimento com alto teor de sílica destina-se a aplicações em que o componente protegido deve permanecer flexível, o espaço disponível não favorece o isolamento rígido e a exposição térmica é suficientemente severa para justificar uma construção com fibra rica em sílica.

A BSTFLEX fabricamangas de sílica e mangas de sílica para altas temperaturasPara proteção de mangueiras, cabos, fios, tubulações e equipamentos industriais.

Quando uma aplicação passa a apresentar alto teor de sílica?

A resposta raramente é determinada por um único valor de temperatura.

Duas máquinas podem ter a mesma temperatura nominal de operação e ainda assim impor cargas muito diferentes em uma manga protetora.

Considere estas duas situações.

No primeiro caso, um cabo é posicionado a 150 mm de um tubo de escape quente, com fluxo de ar constante passando pelo compartimento.

No segundo caso, uma mangueira hidráulica é posicionada a 15 mm de um painel de acesso ao forno e permanece no mesmo local durante todo um turno de produção.

Ambos os componentes podem ser expostos ao calor, mas a intensidade, a duração e o modo de transferência de calor são diferentes.

Uma manga de fibra com alto teor de sílica torna-se uma candidata viável quando uma ou mais das seguintes condições estão presentes:

• A fonte de calor opera em temperaturas que ultrapassam as aplicações normais de fibra de vidro.
• o calor radiante permanece presente por longos períodos
• O componente protegido não pode ser redirecionado para mais longe da fonte de calor.
• É necessária uma barreira têxtil flexível em vez de isolamento rígido.
• A instalação inclui fornos, equipamentos de exaustão ou máquinas de processamento térmico.
• O projetista precisa de uma margem de temperatura adicional em relação a uma solução convencional de fibra de vidro.
• A manga deve suportar ciclos repetidos de aquecimento e resfriamento.

Por que a fibra de alto teor de sílica tem um desempenho diferente da fibra de vidro padrão?

A principal diferença não está na cor da manga ou no fato de ambos os materiais poderem ser transformados em peças têxteis. Está na composição química da fibra.

A fibra de vidro convencional já é um material térmico eficiente e continua adequada para milhares de aplicações industriais. A fibra com alto teor de sílica é selecionada quando se exige um teor de sílica mais elevado para obter melhor estabilidade sob exposição térmica mais severa.

Após processamento adequado, a fibra rica em sílica ainda pode ser convertida em fio e, em seguida, transformada em proteção tubular.

Isso proporciona aos engenheiros uma combinação incomum:

• capacidade de temperatura da fibra mineral
• instalação flexível
• Pequena área de instalação em comparação com muitos sistemas rígidos.
• Compatibilidade com mangueiras curvas e rotas de cabos
• disponibilidade em estruturas trançadas e texturizadas

UMmanga de fibra de alta sílicaPortanto, ocupa uma posição importante entre as mangas flexíveis de uso geral e os sistemas de isolamento refratário muito mais pesados.

A temperatura da fonte de calor não é a mesma que a temperatura da mangueira.

Essa distinção é importante em praticamente todos os projetos de revestimento para altas temperaturas.

O fato de uma superfície de exaustão estar operando a 800°C não significa automaticamente que a mangueira posicionada nas proximidades também esteja exposta a 800°C.

Da mesma forma, um forno com temperatura de câmara de 1.000°C não significa que todos os cabos fora do corpo do forno necessitem de um material adequado para contato direto e contínuo a 1.000°C.

Para a seleção da capa, existem várias temperaturas diferentes que vale a pena considerar:

Uma seleção corretamanga de sílica para alta temperaturaA avaliação deve considerar todo o percurso térmico, e não apenas o valor mais alto especificado no equipamento.

O calor radiante costuma ser o problema oculto.

Muitas falhas em mangueiras e cabos ocorrem sem contato direto com uma superfície quente.

O calor radiante se propaga em espaços abertos. Um turbocompressor, um coletor de admissão, a porta de um forno, um molde aquecido ou um componente metálico incandescente podem irradiar energia continuamente em direção a equipamentos próximos.

É por isso que uma mangueira pode apresentar sinais de envelhecimento térmico mesmo quando o instalador consegue ver claramente um espaço de ar entre a mangueira e a fonte de calor.

O revestimento com alto teor de sílica cria uma barreira térmica ao redor do componente que recebe a radiação.

O resultado depende de diversas variáveis:

• distância da fonte de calor
• temperatura da superfície da fonte
• ângulo de exposição
• espessura da manga
• movimento do ar
• duração da exposição
• temperature limit of the component beneath the sleeve

Reducing radiant exposure can be particularly valuable around hydraulic hose covers, electrical cable jackets and polymer tubing, all of which may have considerably lower temperature limits than the surrounding metal equipment.

Continuous Heat and Short Heat Peaks Should Not Be Treated the Same Way

A common purchasing mistake is comparing sleeve materials only by the highest temperature printed on a datasheet.

Maximum temperature and continuous operating temperature serve different purposes.

A material may tolerate a severe temperature for a short event without being the preferred choice for thousands of hours at that same level.

For high silica sleeve projects, specify at least:

• normal operating temperature
• maximum expected temperature
• duration of the maximum temperature
• number of thermal cycles
• whether the sleeve cools completely between cycles

This information is more useful than simply writing "need 1000°C sleeve" on an inquiry.

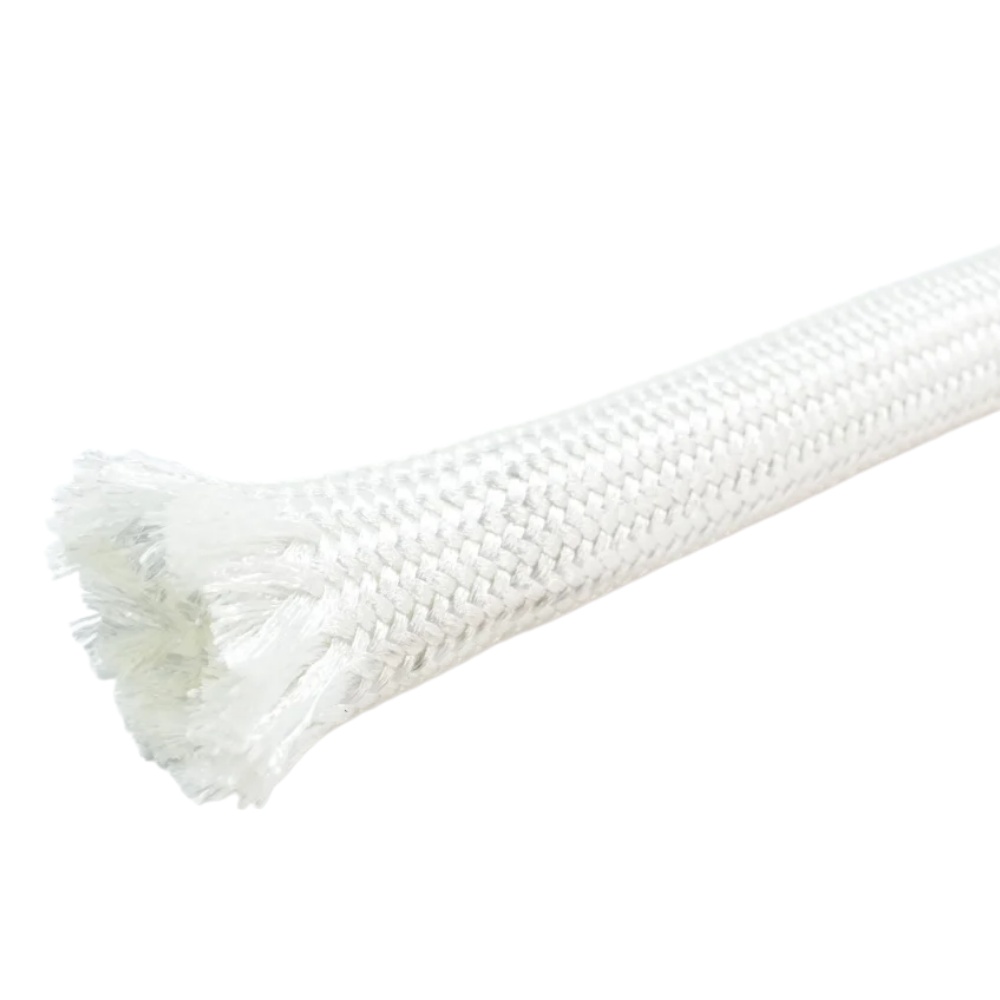

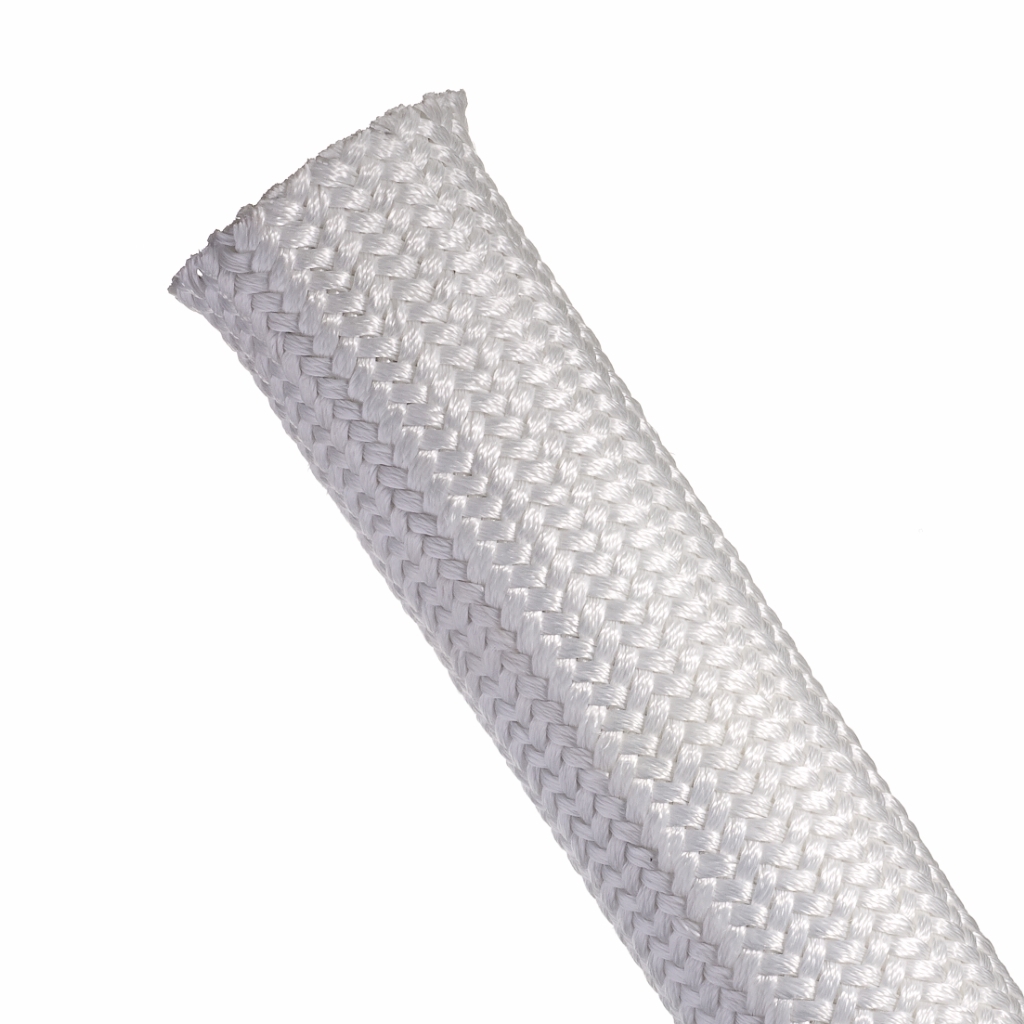

Braided High Silica Sleeve for Compact Thermal Protection

Braiding is particularly useful when the protected component moves, bends or passes through a restricted area.

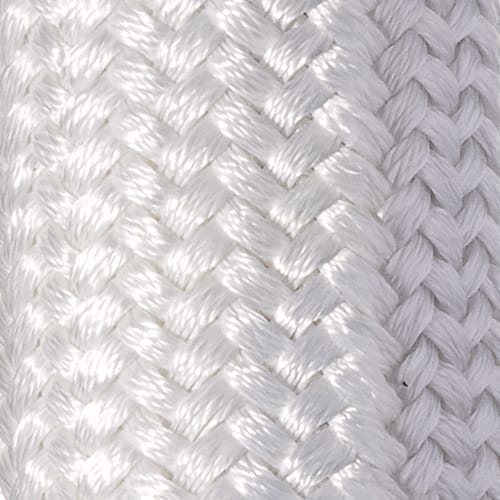

Multiple silica yarns cross around the circumference of the sleeve, forming a coherent tubular structure without turning the material into a rigid pipe.

The construction can follow curved hose and cable routes while remaining stable during handling.

BSTFLEX manufactures aHigh Temperature Resistant Braided Silica Sleevefor severe thermal environments.

The current specification for this particular braided construction lists a maximum temperature resistance of up to 1,200°C.

Typical candidates for braided construction include:

• hydraulic hoses
• electrical cables
• wire bundles
• sensor lines
• small process tubing
• engine components
• lines routed beside exhaust equipment

Where More Insulation Volume Is Needed

Not every installation benefits from the most compact sleeve possible.

Stationary pipework, furnace service connections and some industrial hose assemblies may benefit from a bulkier textile structure.

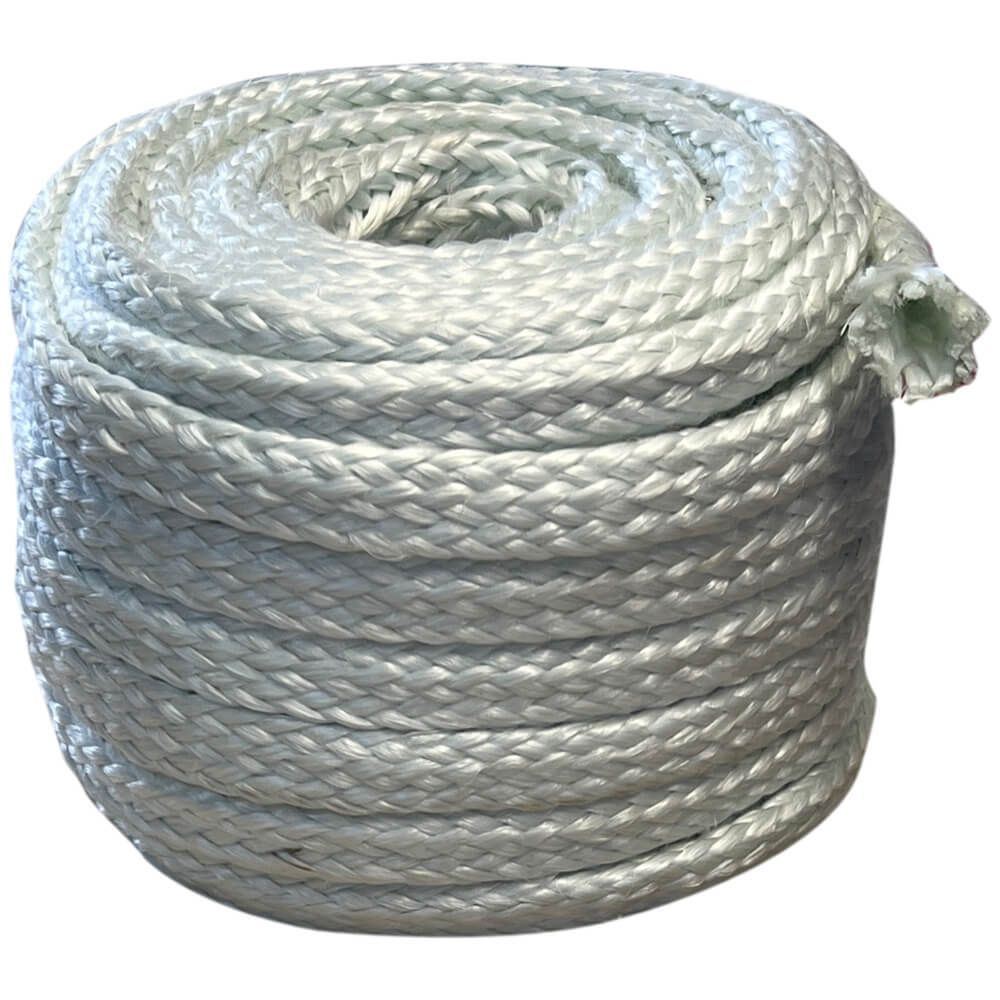

Texturized silica yarn introduces additional fiber volume into the sleeve wall. That structure can create more trapped air within the textile and increase the physical distance through which heat must pass.

For this type of requirement, BSTFLEX also supplies aHeat Insulation Texturized Silica Sleeve.

The decision between compact braided construction and bulkier insulation construction should be based on the installation rather than on product appearance.

High Silica Sleeve Around Hydraulic Systems

Hydraulic systems create a difficult protection problem because the hose often has to remain flexible while operating close to machinery that generates substantial heat.

Common examples include:

• steel production equipment
• die-casting machinery
• foundry equipment
• forging lines
• industrial presses
• mobile diesel machinery
• furnace service systems
• heavy manufacturing equipment

When a hydraulic line is exposed to severe radiant heat, the outer rubber cover may age faster even though hydraulic fluid temperature remains within specification.

A high silica sleeve can be installed as an external textile barrier around the hose.

For this application, engineers should check:

High Silica Sleeving Near Exhaust Equipment

Exhaust systems are one of the clearest examples of concentrated heat inside a limited space.

Diesel engines, turbochargers, exhaust manifolds, generator sets and industrial engines may place wiring, hoses and instrumentation only a short distance from hot exhaust components.

Ahigh silica sleeve for exhaust-adjacent protectioncan be installed around the sensitive component rather than around the exhaust itself.

This distinction changes the design objective.

When the sleeve surrounds a cable or hose near an exhaust:

The objective is protection.

When insulation surrounds the exhaust pipe directly:

The objective is heat containment.

The same material family may appear in both systems, but the required wall structure, installation method and thermal calculation can be different.

Furnace Applications: Look Outside the Chamber

High silica sleeve is often useful around furnace equipment without ever entering the hottest part of the furnace.

External systems still face demanding temperatures around:

• burner assemblies
• furnace doors
• inspection ports
• thermocouple connections
• electrical service cables
• hydraulic and pneumatic lines
• process piping

These components may be exposed to long-duration heat shift after shift.

For such projects, the actual measured temperature at the sleeve location is normally more valuable than the furnace's advertised chamber temperature.

Foundry and Casting Equipment

Foundry environments combine radiant heat, hot equipment, mechanical movement and the possibility of molten-metal exposure.

These conditions should not be reduced to one generic "high-temperature" requirement.

A high silica fiber sleeve may be appropriate for protecting hoses and cables from furnace radiation and nearby hot surfaces.

However, if direct molten-metal splash is expected, the project needs a separate hazard assessment.

The temperature resistance of the fiber alone does not prove that every sleeve construction will safely shed molten aluminum, iron or steel.

For splash exposure, information should include:

• metal type
• molten-metal temperature
• expected splash quantity
• angle of impact
• duration of contact
• required surface coating or treatment

This distinction prevents high-temperature resistance from being confused with molten-metal performance.

Steel Mill Applications

Hydraulic hose and electrical cable often have to run through hot zones in steel processing plants.

Potential areas include:

• continuous casting equipment
• rolling mills
• reheating furnace areas
• hot strip processing
• ladle equipment
• material handling systems

In these environments, temperature is often only one part of the problem.

A sleeve may also encounter scale, abrasion, vibration and mechanical contact. The complete protective system should therefore be selected around the real location rather than using high silica fiber as a universal solution.

High Silica Sleeve for Electrical Cable and Instrumentation

Electrical systems frequently contain materials whose thermal limits are much lower than those of nearby metal equipment.

Insulation compounds, connectors and sensor interfaces may be the weakest points.

A high silica sleeve can provide an external thermal barrier around:

• power cables
• sensor wiring
• thermocouple leads
• control cables
• engine wiring harnesses
• furnace instrumentation
• generator wiring

It is important to separate two specifications.

Thermal insulation:reducing heat reaching the cable.

Electrical insulation:preventing electrical conduction or providing a defined dielectric rating.

A silica sleeve selected for heat protection should not automatically be assigned an electrical dielectric rating unless that performance is independently specified and tested.

Pipe and Tube Insulation With High Silica Fiber

Small-diameter process piping can be awkward to insulate with conventional removable blankets or fabricated metal jackets.

Flexible silica sleeving can offer a practical alternative where the geometry permits tubular installation.

Typical examples include:

• hot gas lines
• generator exhaust connections
• industrial engine tubing
• heated process pipes
• laboratory furnace connections
• high-temperature instrumentation tubing

Direct pipe insulation should be evaluated according to heat loss and desired outer-surface temperature, not only according to whether the silica fiber survives the pipe temperature.

How Much Temperature Margin Should Be Allowed?

Running any thermal protection material continuously at the edge of its maximum published capability is rarely the preferred engineering approach.

Real equipment does not remain perfectly constant.

Temperature spikes occur. Airflow changes. Production rates increase. Exhaust regeneration events raise local heat. Deposits accumulate. Hoses move closer to hot surfaces. Maintenance changes routing.

A practical design therefore includes thermal margin.

The amount of margin depends on:

• severity of failure if protection is lost
• accuracy of available temperature data
• thermal cycling frequency
• continuous versus intermittent exposure
• airflow stability
• distance from the heat source
• expected service life

A critical hydraulic line beside a furnace deserves a more conservative approach than a non-critical cable exposed only during occasional equipment warm-up.

High Silica Sleeve vs Adding More Fiberglass Layers

When temperatures rise, it can be tempting to keep increasing the thickness of an existing fiberglass solution.

That approach has practical limits.

The correct decision is not "silica is always better." It is whether moving to a different fiber system solves the actual thermal limitation more effectively than simply adding material thickness.

High Silica Does Not Solve Every Hazard

A high temperature rating can create a false sense that one sleeve can handle every severe industrial environment.

That is not the case.

High silica fiber does not automatically provide:

• oil sealing
• waterproofing
• chemical resistance to every fluid
• high abrasion resistance against sharp metal edges
• electrical dielectric certification
• molten-metal splash resistance
• flame resistance for every specified test method

If the application includes several hazards at once, a different coating, outer layer or sleeve system may be required.

The best high-temperature protection system is often selected by identifying the dominant failure mechanism first.

Braided High Silica Sleeve or Texturized Silica Sleeve?

These are selection directions, not fixed rules. Diameter, temperature and installation geometry can change the preferred solution.

Information Needed for an Extreme-Temperature Sleeve Project

A useful technical inquiry can often be summarized on one page.

For BSTFLEX to evaluate a high silica sleeve application, provide the following information whenever available:

1. Protected component:hose, cable, wire, pipe or another assembly.
2. Outside diameter:including the largest fitting or connector the sleeve must pass over.
3. Heat source:exhaust, furnace, engine, heated pipe, molten process or other equipment.
4. Heat-source temperature:normal and peak.
5. Distance from heat source:particularly important for radiant heat.
6. Local ambient temperature:where known.
7. Maximum allowable component temperature:if specified by the hose, cable or equipment manufacturer.
8. Exposure duration:continuous, cyclic or short peak.
9. Movement:stationary, vibrating, flexing or repeatedly bending.
10. Other hazards:oil, abrasion, molten splash, weather or chemical exposure.
11. Required length and quantity.

Photographs, drawings and actual temperature measurements can make product selection considerably more accurate.

BSTFLEX High Silica Sleeve Options

BSTFLEX supplies silica sleeving for industrial thermal protection through different textile constructions.

High Temperature Resistant Braided Silica Sleeve

Designed for flexible thermal protection where a mechanically stable tubular braid is preferred. Applications include hoses, cables, wiring and equipment positioned close to severe heat sources.

View Braided High Silica Sleeve

Heat Insulation Texturized Silica Sleeve

Designed for applications where a bulkier silica textile structure and increased insulation volume are desirable around pipes, hoses and industrial equipment.

View Texturized Silica Insulation Sleeve

For the complete product family, visit theSilica Sleevecategory.

Questions Engineers Frequently Ask About High Silica Sleeve

What is a high silica sleeve?

A high silica sleeve is a flexible tubular thermal protection product manufactured from silica-rich fiber yarn. It is generally selected when hoses, cables, wires or pipes require protection in thermal conditions more severe than those normally handled by conventional fiberglass sleeving.

Where is high silica sleeving normally used?

Typical locations include exhaust systems, furnaces, foundries, steel plants, engines, heat-treatment equipment, industrial ovens and machinery containing high-temperature hoses, cables or piping.

Can high silica sleeve be installed over a hydraulic hose?

Yes. Braided silica sleeves can be used as external thermal protection for hydraulic hoses exposed to radiant or ambient heat. Hose diameter, fittings, bend radius, abrasion and the actual thermal environment should be reviewed before selection.

Can high silica sleeve be used around exhaust components?

Yes. It can protect cables, hoses and wiring positioned near exhaust pipes, manifolds and turbochargers. Direct insulation of an exhaust pipe is a different application and should be evaluated according to pipe temperature, diameter and required heat containment.

Does high silica sleeve work against radiant heat?

Silica sleeving can form part of a radiant-heat protection system by creating a high-temperature textile barrier between the heat source and the protected component. Actual performance depends on distance, sleeve construction, exposure time, airflow and source temperature.

Is maximum temperature the same as continuous temperature?

No. Maximum or peak temperature and continuous operating temperature describe different exposure conditions. Product selection should consider both values and the duration of each exposure.

Is high silica sleeve always better than fiberglass sleeve?

No. Standard fiberglass remains a cost-effective material where its thermal capability is sufficient. High silica fiber is generally considered when greater temperature capability or additional thermal margin is required.

Which is better, braided or texturized silica sleeve?

Braided construction is often preferred where compactness, flexibility and dimensional stability are important. Texturized construction can be considered when greater textile volume and thermal insulation are priorities.

What size high silica sleeve should I order?

Utilize a maior dimensão externa que a luva deve cobrir, e não apenas o tamanho nominal da mangueira ou do cabo. Conexões, conectores e método de instalação também devem ser considerados.

A BSTFLEX pode produzir revestimentos de sílica personalizados?

Sim. A BSTFLEX pode avaliar o diâmetro interno, o comprimento, a construção, a embalagem e outros requisitos personalizados do fabricante original (OEM) de acordo com a aplicação.
